| Brand | Swaraj Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 42HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty | 2000 Hours or 2 Year |

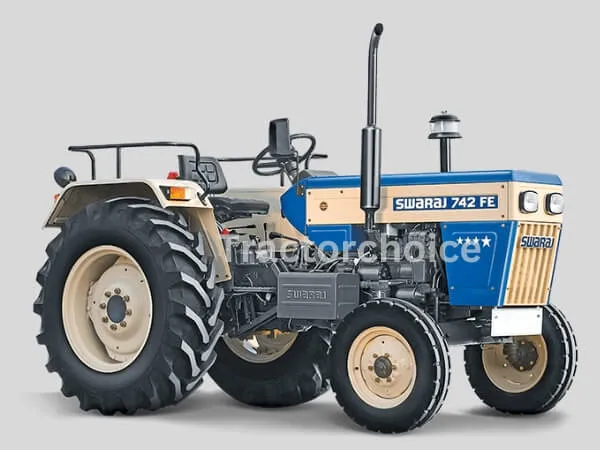

Swaraj Tractors Swaraj 742 FE
Swaraj 742 FE is a 31.31–33.55 kW (42-45hp) tractor. It is fitted with powerful & fuel efficient 3-cylinder engine. It inherits Swaraj DNA & offers highest engine CC and torque in its category. It is equipped with advance innovative features like Multi Speed reverse & forward PTO, power steering, single & dual clutch & better braking efficiency and boasts of having less maintenance costs. This tractor is suitable for puddling operation, implements like rotavator and cultivator and also haulage and other agricultural operations.
Swaraj 742 FE FULL SPECIFICATION
Swaraj Tractors Swaraj 742 FE Engine
No. Of Cylinder
3
HP Category
42 HP
Air Filter
3 - stage oil bath type
PTO HP
35.7 HP
Cooling System
Water Cooled
Swaraj Tractors Swaraj 742 FE Transmission(GearBox)
Clutch Type
Single Clutch
Gear Box
8 Forward + 2 Reverse
Battery
12 V 88 Ah
Alternator
Starter motor
Forward Speed
2.9 - 29.21 kmph
Reverse Speed
3.44 - 11.29 kmph
Swaraj Tractors Swaraj 742 FE Brakes
Brake Type
Oil immersed brakes
Swaraj Tractors Swaraj 742 FE Steering
Steering Type
Mechanical/Power Steering (optional)
Swaraj Tractors Swaraj 742 FE Power Take Off
PTO Type
Multi Speed PTO & Reverse PTO
PTO rpm
540 RPM @ 1650 ERPM
Swaraj Tractors Swaraj 742 FE Dimension and Weight
Weight
2020 KG
Wheelbase
1945 MM
Overall Length
3450 MM
Tractor Width
1720 MM
Ground Clearance
422 MM
Swaraj Tractors Swaraj 742 FE Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1700 Kg.
3 point Linkage
Auto Draft & Depth Control (ADDC), I & II type implement pins
Swaraj Tractors Swaraj 742 FE Tyre Size
Front
6.00 x 16
Rear
13.6 x 28
Swaraj Tractors Swaraj 742 FE Additional Features
Accessories
Tool, Toplink, Canopy, Hook, Bumpher, Drawbar
Status
Launched
