| Brand | Swaraj Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 29HP |
| Gear Box | 9 Forward + 3 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty | 4500 Hour / 6 Years |

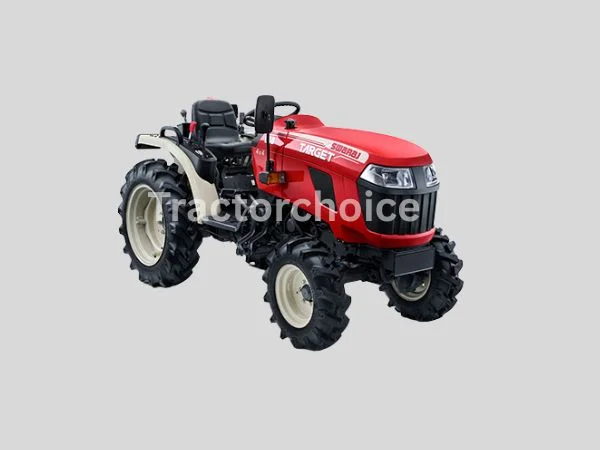

Swaraj Target 630 4WD
Swaraj Target 630 4WD FULL SPECIFICATION
Swaraj Target 630 4WD Engine
No. Of Cylinder
3
HP Category
29 HP
Capacity CC
1331 CC
Engine Rated RPM
2800 RPM
Max Torque
87 Nm
Air Filter
Dry Type, Dual Element
PTO HP
24 HP
Cooling System
Liquid Cooled
Swaraj Target 630 4WD Transmission(GearBox)
Clutch Type
Single Dry Clutch
Transmission Type
Mechanical Synchromesh
Gear Box
9 Forward + 3 Reverse
Swaraj Target 630 4WD Brakes
Brake Type
Oil Immersed Brakes
Turning Radius with Brakes
2100 MM
Swaraj Target 630 4WD Steering
Steering Type
Balanced Power Steering
Swaraj Target 630 4WD Power Take Off
PTO rpm
540 & 540E
Swaraj Target 630 4WD Fuel Capacity
Fuel Tank Capacity
27 litre
Swaraj Target 630 4WD Dimension and Weight
Weight
975 KG
Wheelbase
1555 MM
Swaraj Target 630 4WD Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
980 kg
3 Point Linkage(Mm)
Category 1
Swaraj Target 630 4WD Tyre Size
Front
180/85 D 12
Rear
9.50 X 20 / 8.30 x 20
Swaraj Target 630 4WD Additional Features
Accessories
4500 Hour / 6 Year
Status
Launched
