| Brand | Eicher Tractors |
|---|---|
| Cylinder | 1 |
| HP Category | 18HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty | 1000 Hour or 1 Year |

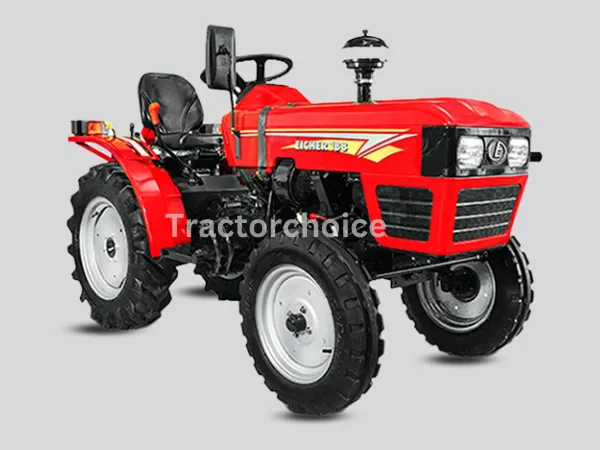

Eicher 188
The light-weight design of the tractor always attracts new-age farmers. 188 Eicher is the 1st choice of every new generation. The tractor has a superb reverse and forward speed. Also, it comes with a solid battery and alternator.
Eicher 188 FULL SPECIFICATION
Eicher 188 Engine
No. Of Cylinder
1
HP Category
18 HP
Capacity CC
825 CC
Engine Rated RPM
2400 RPM
PTO HP
51.4 HP
Cooling System
Air cooled
Eicher 188 Transmission(GearBox)
Clutch Type
Single Clutch
Transmission Type
Side shift Partial constant mesh
Gear Box
8 Forward + 2 Reverse
Battery
12 V 75 Ah
Forward Speed
21.65 kmph
Eicher 188 Brakes
Brake Type
Oil Immersed Brakes
Eicher 188 Steering
Steering Type
Mechanical Steering
Eicher 188 Power Take Off
PTO Type
Live, Six splined shaft, Two-speed PTO
PTO rpm
540 @ 2117,1431 ERPM
Eicher 188 Fuel Capacity
Fuel Tank Capacity
28 litres
Eicher 188 Dimension and Weight
Weight
840 KG
Wheelbase
1420 MM
Overall Length
2650 MM
Tractor Width
970 MM
Eicher 188 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
700 Kg
3 Point Linkage(Mm)
Draft, position and response control Links fitted with CAT-II (Combi Ball)
Eicher 188 Tyre Size
Front
5.00 X 12
Rear
8.00 X 18
Eicher 188 Additional Features
Accessories
Tipping trailer kit, Drawbar, Top link
Status
Launched
