| Brand | ACE |
|---|---|
| Cylinder | 1 |
| HP Category | 15HP |
| Gear Box | 6 Forward + 3 Reverse |
| Brakes | Disc Brakes |
| Warranty |

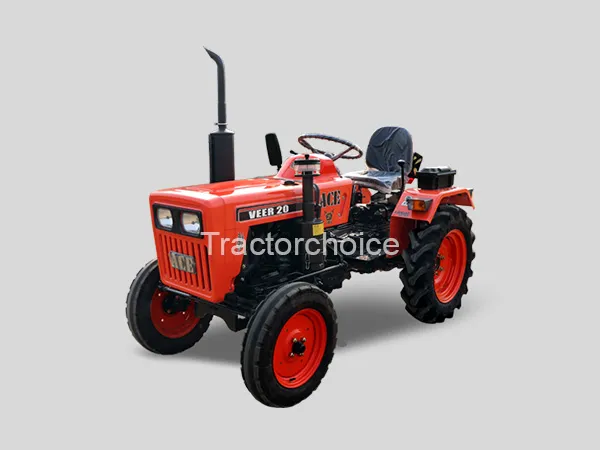

ACE VEER 20
ACE VEER 20 FULL SPECIFICATION
ACE VEER 20 Engine
No. Of Cylinder
1
HP Category
20
Capacity CC
863 CC
Air Filter
Oil Bath Air-cleaner for Less Serviceability
PTO HP
17.2 HP
Cooling System
Water Cooled
ACE VEER 20 Transmission(GearBox)
Clutch Type
Dry Friction Plate
Transmission Type
Sliding Mesh
Gear Box
6 Forward + 3 Reverse
Battery
12 V 50 Ah
Alternator
12 V 43 Amp.
Forward Speed
28.0 kmph
Reverse Speed
6.31 kmph
ACE VEER 20 Brakes
Brake Type
Disc Brakes
ACE VEER 20 Steering
Steering Type
Power Steering
ACE VEER 20 Power Take Off
PTO Type
Reverse PTO
PTO rpm
540 rpm
ACE VEER 20 Dimension and Weight
Weight
940 kg
Wheelbase
1490 mm
Overall Length
2550 mm
Tractor Width
1220 mm
Ground Clearance
265 mm
ACE VEER 20 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
600 kg
3 Point Linkage(Mm)
PCDC
ACE VEER 20 Tyre Size
Front
5.25 X 14
Rear
8.00 X 18
ACE VEER 20 Additional Features
Accessories
2000 Hours / 2 Year
Status
Launched
