| Brand | Indo Farm |
|---|---|
| Cylinder | 1 |
| HP Category | 20HP |
| Gear Box | 6 Forward + 2 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty |

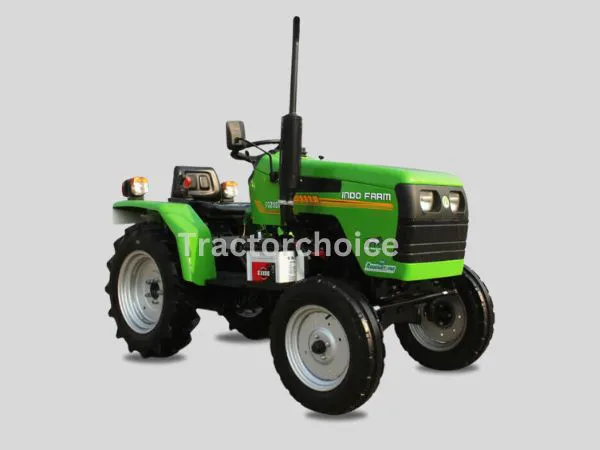

INDO FARM 1020 DI
INDO FARM 1020 DI FULL SPECIFICATION
INDO FARM 1020 DI Engine
No. Of Cylinder
1
HP Category
20 HP
Capacity CC
895 CC
Engine Rated RPM
2300 RPM
Air Filter
Oil Bath Type
PTO HP
12 HP
Cooling System
Water Cooled
INDO FARM 1020 DI Transmission(GearBox)
Clutch Type
Single Clutch
Transmission Type
Sliding Mesh
Gear Box
6 Forward + 2 Reverse
Battery
12 Volts-65 Ah
Alternator
Self Starter Motor & Alternator
Forward Speed
26.0 kmph
Reverse Speed
12.92 kmph
INDO FARM 1020 DI Brakes
Brake Type
Oil immersed multiple discs
INDO FARM 1020 DI Steering
Steering Type
Mechanical - Recirculating ball type (optional)
INDO FARM 1020 DI Power Take Off
PTO Type
6 Splines
PTO rpm
540@2100 RPM
INDO FARM 1020 DI Fuel Capacity
Fuel Tank Capacity
23 litres
INDO FARM 1020 DI Dimension and Weight
Weight
800 KG
Overall Length
2520 MM
Tractor Width
1050 MM
Ground Clearance
210 MM
INDO FARM 1020 DI Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
500 KG
3 Point Linkage(Mm)
ADDC
INDO FARM 1020 DI Tyre Size
Front
5.20 X 14
Rear
8.00 X 18
INDO FARM 1020 DI Additional Features
Accessories
Trailor hook, Draw bar, tool kit, operator manual, top link
Status
Launched
