| Brand | Farmtrac Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 35HP |
| Gear Box | 8 Forward + 2 Reverse |
| Brakes | Multi Disc Oil Immersed Brakes |
| Warranty |

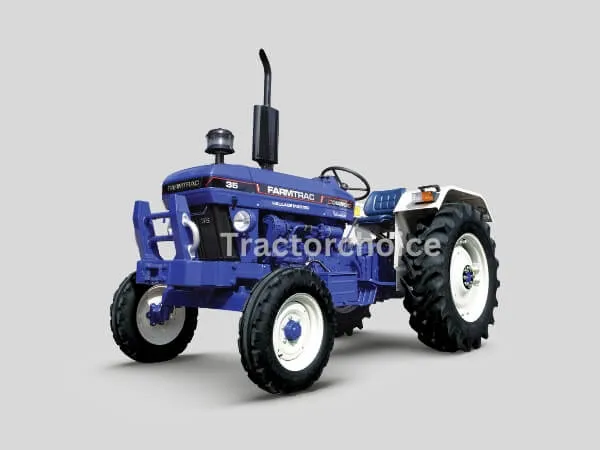

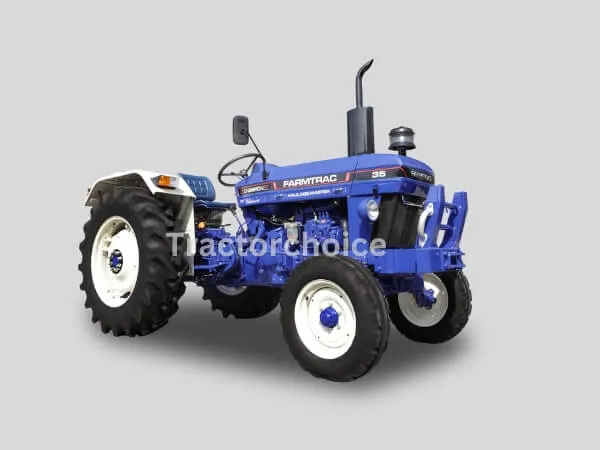

Farmtrac Tractors Farmtrac Champion 35 Haulage Master
Farmtrac Champion 35 Haulage Master FULL SPECIFICATION
Farmtrac Tractors Farmtrac Champion 35 Haulage Master Engine
No. Of Cylinder
3
HP Category
35 HP
Engine Rated RPM
2000 RPM
Farmtrac Tractors Farmtrac Champion 35 Haulage Master Transmission(GearBox)
Clutch Type
Single
Transmission Type
Full Constant Mesh
Gear Box
8 Forward + 2 Reverse
Forward Speed
2.2-36.3 Kmph
Reverse Speed
3.3-13.4 Kmph
Rear Axle
Straight Axle
Farmtrac Tractors Farmtrac Champion 35 Haulage Master Brakes
Brake Type
Multi Plate Oil Immersed Brake
Turning Radius with Brakes
3000 MM
Farmtrac Tractors Farmtrac Champion 35 Haulage Master Steering
Steering Type
Mechanical - Single Drop Arm
Farmtrac Tractors Farmtrac Champion 35 Haulage Master Power Take Off
PTO Type
Single 540
PTO rpm
1810
Farmtrac Tractors Farmtrac Champion 35 Haulage Master Fuel Capacity
Fuel Tank Capacity
50 litre
Farmtrac Tractors Farmtrac Champion 35 Haulage Master Dimension and Weight
Weight
1895 Kg
Wheelbase
2100 mm
Overall Length
3315 mm
Tractor Width
1710 mm
Ground Clearance
377 mm
Farmtrac Tractors Farmtrac Champion 35 Haulage Master Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1500 Kg
Hydraulics Control
ADDC
Farmtrac Tractors Farmtrac Champion 35 Haulage Master Tyre Size
Front
6.00 x 16
Rear
13.6 x 28
