| Brand | Eicher Tractors |
|---|---|
| Cylinder | 1 |
| HP Category | 25HP |
| Gear Box | 5 Forward + 1 Reverse |
| Brakes | Disc Brake / Drum Oil Immersed Brakes (Optional) |
| Warranty | 1 Year |

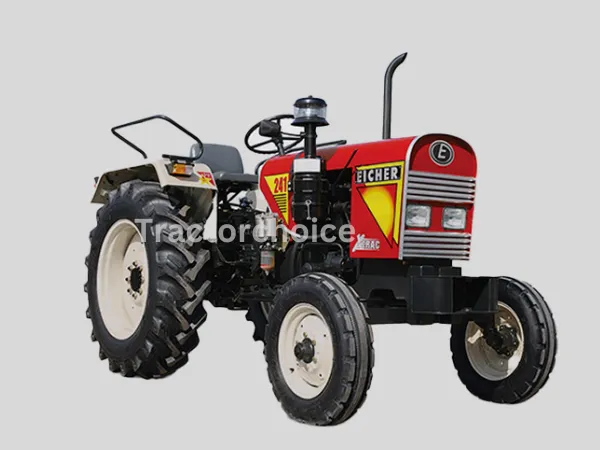

Eicher 241
Eicher 241 tractor has a single clutch, which makes this tractor durable and smooth in functioning. Eicher 25 HP tractor has manual steering, which makes the control very easy.
Eicher 241 FULL SPECIFICATION
Eicher 241 Engine
No. Of Cylinder
1
HP Category
25 HP
Capacity CC
1557 CC
Engine Rated RPM
1650 RPM
Air Filter
Oil bath type
PTO HP
21.3 HP
Cooling System
Water Cooled
Eicher 241 Transmission(GearBox)
Clutch Type
Single Clutch
Transmission Type
Central Shifting/ Sliding Mesh
Gear Box
5 Forward + 1 Reverse
Battery
12 V 88 AH
Forward Speed
25.48 kmph
Eicher 241 Brakes
Brake Type
Drum Brake, Dry Disc Brake (Optional) , Drum Oil Immersed Brakes (Optional)
Eicher 241 Steering
Steering Type
Mechanical/Power Steering (optional)
Eicher 241 Power Take Off
PTO Type
Live, Six splined shaft
PTO rpm
540RPM @ 1715 ERPM
Eicher 241 Fuel Capacity
Fuel Tank Capacity
35 litre
Eicher 241 Dimension and Weight
Weight
1640 kG
Wheelbase
1895 MM
Overall Length
3160 MM
Tractor Width
1640 MM
Ground Clearance
410 MM
Eicher 241 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
960 Kg
3 Point Linkage(Mm)
Draft, Position and Response control Links fitted with CAT-2 (Combi Ball)
Eicher 241 Tyre Size
Front
6.00 x 16
Rear
12.4 x 28
Eicher 241 Additional Features
Accessories
Tipping trailer kit, Drawbar, Top link
Status
Launched
