| Brand | New Holland Tractors |
|---|---|
| Cylinder | 3 |
| HP Category | 47HP |
| Gear Box | 8 Forward + 2 Reverse/8 forward + 8 Reverse |
| Brakes | Mech. Actuated Real OIB |
| Warranty | 6000 Hours or 6 Year |

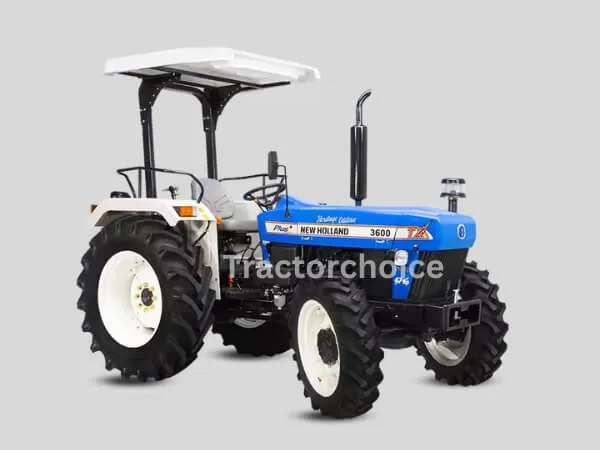

New Holland 3600 Tx Super Heritage Edition
MAIN FEATURES
- FPT 47 hp Inline Engine
- 8F+2R / 8F+8R
- Gearbox 540,540E
- GSPTO & RPTO [EPTRA PTO]
- Straight Axle
- Planetary Drive
- Lift Capacity 1800 Kg
New Holland 3600 Tx Super Heritage Edition FULL SPECIFICATION
New Holland 3600 Tx Super Heritage Edition Engine
No. Of Cylinder
3
HP Category
47 HP
Capacity CC
2931 CC
Engine Rated RPM
2100 RPM
Air Filter
Wet Type Air Cleaner
PTO HP
43 HP
New Holland 3600 Tx Super Heritage Edition Transmission(GearBox)
Clutch Type
Single & Double Clutch with Independent PTO Lever
Transmission Type
Constant Mesh AFD
Gear Box
8 Forward + 2 Reverse/ 8 Forward + 8 Reverse
Battery
88 Ah
Alternator
35 Amp
Forward Speed
2.80-31.02 kmph
Reverse Speed
2.80-10.16 kmph
New Holland 3600 Tx Super Heritage Edition Brakes
Brake Type
Mech. Actuated Real OIB
New Holland 3600 Tx Super Heritage Edition Steering
Steering Type
Power Steering
New Holland 3600 Tx Super Heritage Edition Power Take Off
PTO Type
Independent PTO Lever
PTO rpm
2100
New Holland 3600 Tx Super Heritage Edition Fuel Capacity
Fuel Tank Capacity
46 Litre
New Holland 3600 Tx Super Heritage Edition Dimension and Weight
Weight
2035/2210 KG
Wheelbase
1955 MM
Overall Length
3470 MM
Tractor Width
1720 MM
Ground Clearance
425/370 MM
New Holland 3600 Tx Super Heritage Edition Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
1800 Kg
3 Point Linkage(Mm)
High precision
New Holland 3600 Tx Super Heritage Edition Tyre Size
Front
6.0 X 16 / 6.5 X 16 / 9.5 X 24
Rear
13.6 X 28 /14.9 x 28
New Holland 3600 Tx Super Heritage Edition Additional Features
Accessories
Paddy Suitability - Double Metal face sealing , Synchro Shuutle, Skywatch, ROPS & Canopy, MHD Axle
Status
Launched
