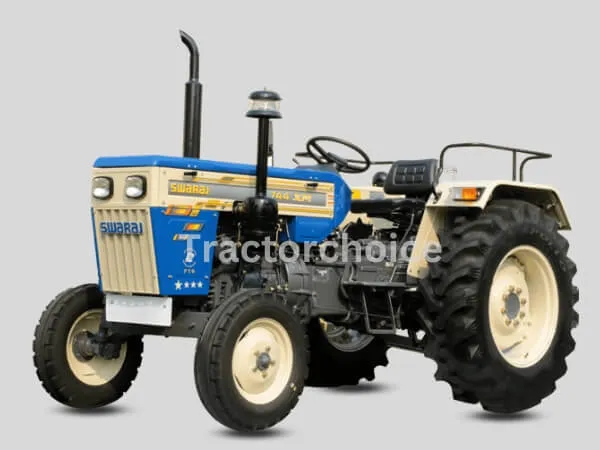

Swaraj 744 XM

Rating: 5.00
Brand SWARAJ
Cylinder 3
HP Category 48HP
Gear Box 8 Forward + 2 Reverse
Brakes Oil Immersed Brakes
Warranty 2000 Hours or 2 Year

Swaraj 744 XM

A brief explanation about Swaraj 744 XM in India


Swaraj 744 XM is among the famous offerings from the renowned Swaraj company. This is a 45-50 HP model that is configured with a constant mesh type side shift gearbox that offers extra comfort through the flexible engagement of leg space and gears. Swaraj 744 XM has sensilift hydraulics, power steering, multi-speed gear PTO, dual-clutch, and advanced oil immersed brakes. In addition, this model is fitted with various latest features that help to increase overall productivity. Swaraj 744 XM is compatible with various agriculture attachments for different purposes such as levelling, hauling, tilling, puddling and harvesting. Swaraj 744 XM is a utility-based model and is in demand for commercial use.


This tractor is configured with all the new-age elements and a capable engine delivering a potential total output of 44 horsepower. To deliver extraordinary performance, this engine is paired with a ten-speed gearbox that has two reverse and eight forward gears. This entire gear arrangement helps to reach maximum performance. In addition, the Swaraj 744 XM has a 1700 KG of lifting capacity.


Special Features:


Swaraj 744 XM is fitted with a three-cylinder engine (diesel) having a 3307 CC capacity and delivering a potential output of 44 horsepower. A six-spline PTO helps to provide a Power take-off of 37 HP, this PTO has a range of 540 RPM. 744 XM has a wheel setup of 6 x 16 inches and 13.6 x 28/14.9 x 28 inches in the front and rear tyres. This wheel arrangement helps to perform operations in different types of terrains. To deliver the highest power via its transmission that is of the type constant mesh. This entire transmission is connected through both single/dual-clutch.

Swaraj 744 XM tractor is a full-sized tractor having a wheelbase of 2140 mm and 3555 mm in length.



Why consider buying a Swaraj 744 XM in India?


The above-stated information is provided to help you guide and find authentic information about tractors. You can use this information to decide on the next tractor you are willing to buy. You can check out all the latest pictures, videos, and reviews of swaraj 744 XM on our website.



Swaraj 744 XM FULL SPECIFICATION

Swaraj 744 XM Engine

No. Of Cylinder

3

HP Category

48 HP

Capacity CC

3307 CC

Engine Rated RPM

1800 RPM

Air Filter

3- Stage Oil Bath Type

PTO HP

39.8 HP

Cooling System

Water Cooled

Swaraj 744 XM Transmission(GearBox)

Clutch Type

Dual/ Single (Optional)

Gear Box

8 Forward + 2 Reverse

Battery

12 V 88 AH

Alternator

Starter motor

Forward Speed

2.6 - 29.6 kmph

Reverse Speed

2.6 - 10.4 kmph

Swaraj 744 XM Brakes

Brake Type

Oil Immersed Brakes

Swaraj 744 XM Steering

Steering Type

Mechanical/Power Steering (optional)

Steering Adjustment

Single Drop Arm

Swaraj 744 XM Power Take Off

PTO Type

Live Single Speed Pto

PTO rpm

540

Swaraj 744 XM Fuel Capacity

Fuel Tank Capacity

60 litre

Swaraj 744 XM Dimension and Weight

Weight

2080 KG

Wheelbase

2080 KG

Overall Length

2080 KG

Tractor Width

1730 MM

Ground Clearance

400 MM

Swaraj 744 XM Lifting Capacity(Hydraulics)

Lifting Capacity in Kg

1700 Kg

3 point Linkage

Automatic Depth & Draft Control, I & II type implement pins.

Swaraj 744 XM Tyre Size

Front

6.00 x 16

Rear

13.6 x 28 / 14.9 x 28 (Optional)

Swaraj 744 XM Additional Features

Accessories

Tools, Bumpher, Ballast Weight, Top Link, Canopy, Drawbar, Hitch

Status

Launched
