| Brand | New Holland |
|---|---|
| Cylinder | 4 |
| HP Category | 106HP |
| Gear Box | 20 Forward + 20 Reverse |
| Brakes | Hydraulically Actuated Real Oil Immersed Multi Dis |
| Warranty |

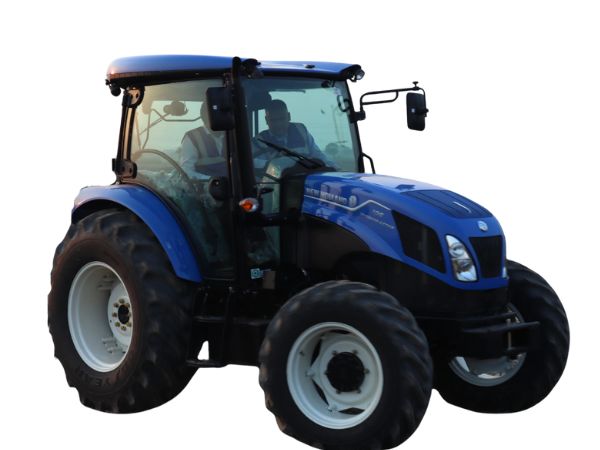

New Holland Workmaster 105 HVAC Cabin
New Holland Workmaster 105 HVAC Cabin FULL SPECIFICATION
New Holland Workmaster 105 HVAC Cabin Engine
No. Of Cylinder
4
HP Category
106 HP
Capacity CC
3387 CC
Engine Rated RPM
2300 RPM
Air Filter
Dry Type with Auto Cleaning
New Holland Workmaster 105 HVAC Cabin Transmission(GearBox)
Clutch Type
Multi disc Wet Type with Power Shuttle
Transmission Type
Fully Synchromesh with Creeper gear
Gear Box
20 Forward + 20 Reverse
Battery
165 Ah
Alternator
120 Amp
Rear Axle
Heavy Duty Planetary Reduction
New Holland Workmaster 105 HVAC Cabin Brakes
Brake Type
Hydraulically Actuated Real Oil Immersed Multi Disc Brakes
New Holland Workmaster 105 HVAC Cabin Steering
Steering Type
Power Steering
New Holland Workmaster 105 HVAC Cabin Power Take Off
PTO Type
Electro Hydraulic Multi Disc Wet Type
PTO rpm
540 @ 1876 RPM / 1000 @ 2125 RPM
New Holland Workmaster 105 HVAC Cabin Fuel Capacity
Fuel Tank Capacity
90 Litre
New Holland Workmaster 105 HVAC Cabin Dimension and Weight
Weight
3870 Kg
Wheelbase
2130 MM
Overall Length
4125 MM
Tractor Width
2180 MM
Ground Clearance
410 MM
New Holland Workmaster 105 HVAC Cabin Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
3500 kg with Dual Assist Ram
New Holland Workmaster 105 HVAC Cabin Tyre Size
Front
12.4 X 24
Rear
18.4 X 30
New Holland Workmaster 105 HVAC Cabin Additional Features
Accessories
All Weather HVAC cabin, Air Suspended adjustable seat with seat belt
Status
Launched
