| Brand | Swaraj |
|---|---|
| Cylinder | 1 |
| HP Category | 15HP |
| Gear Box | 6 Forward + 3 Reverse |
| Brakes | Dry Disc Brakes |
| Warranty | 750 Hours Or 1 Year |

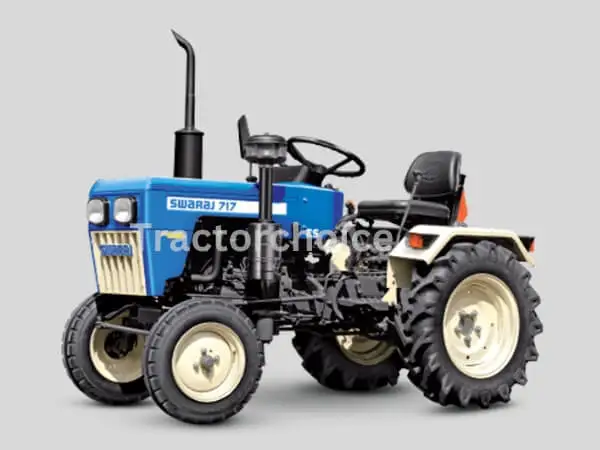

SWARAJ 717
Swaraj 717 is the latest value-for-money offering from Swaraj in the sub-20hp (14.91 kW) category. This best-in-class tractor redefines a farmer’s life. It offers solid performance in using implements like rotavator, cultivator, spraying, haulage, sowing, reaper, threshing and across multiple crops like grapes, groundnut, cotton, castor etc. It is easy to maintain and highly reliable to use.
SWARAJ 717 FULL SPECIFICATION
SWARAJ 717 Engine
No. Of Cylinder
1
HP Category
15 HP
Capacity CC
863.5 CC
Engine Rated RPM
2300 RPM
Air Filter
3-stage oil bath type
PTO HP
9 HP
Cooling System
Water Cooled
SWARAJ 717 Transmission(GearBox)
Clutch Type
Single clutch
Transmission Type
Sliding Mesh
Gear Box
6 Forward + 3 Reverse
Battery
12 V 50 Ah
Alternator
Starter motor
Forward Speed
2.02 - 25.62 kmph
Reverse Speed
1.92 - 5.45 kmph
SWARAJ 717 Brakes
Brake Type
Dry Disc Brakes
SWARAJ 717 Steering
Steering Type
Mechanical
Steering Adjustment
Single Drop Arm
SWARAJ 717 Power Take Off
PTO Type
Live Single Speed
PTO rpm
Standard 540 r/min @ 2053 engine r/min
PTO Power
9
SWARAJ 717 Fuel Capacity
Fuel Tank Capacity
23 litres
SWARAJ 717 Dimension and Weight
Weight
850 KG
Wheelbase
1490 MM
Overall Length
2435 MM
Tractor Width
1210 MM
Ground Clearance
260 MM
SWARAJ 717 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
780 kg
3 Point Linkage(Mm)
Live Hydraulics , ADDC for l type implement pins
Hydraulics Control
ADDC
SWARAJ 717 Tyre Size
Front
5.20 x 14
Rear
8.00 x 18
SWARAJ 717 Additional Features
Accessories
Tools, Top Link
Status
Launched
