| Brand | MASSEY FERGUSON |
|---|---|
| Cylinder | 3 |
| HP Category | 58HP |
| Gear Box | 12 Forward + 4 Reverse |
| Brakes | Oil Immersed Brakes |
| Warranty | 4 (2 Yrs Stnd.+ 2 Yrs Extd.) Year |

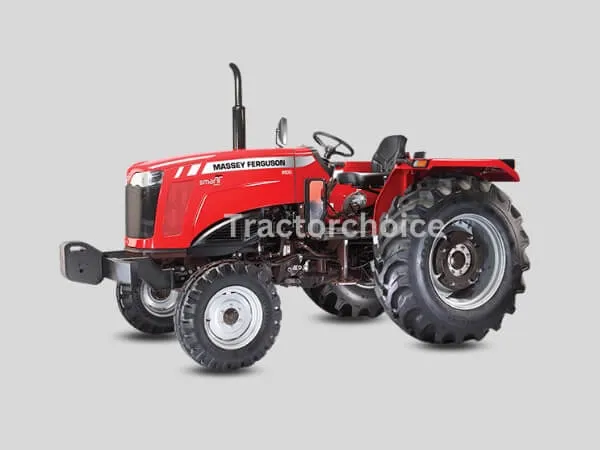

Massey Ferguson 9500 2WD
Massey Ferguson 9500 is loaded with three cylinders and a mighty 2700 CC engine. The tractor has Oil-Immersed Multi-Disc Brakes for smooth operations and proper traction.
Massey Ferguson 9500 2WD FULL SPECIFICATION
Massey Ferguson 9500 2WD Engine
No. Of Cylinder
3
HP Category
58 HP
Capacity CC
2700 CC
Air Filter
Dry Air Cleaner
PTO HP
55 HP
Cooling System
Water Cooled
Massey Ferguson 9500 2WD Transmission(GearBox)
Transmission Type
Comfimesh
Gear Box
8 Forward + 8 Reverse/8 Forward + 2 Reverse
Battery
12 V 88 AH
Alternator
12 V 35 A
Forward Speed
35.8 kmph
Massey Ferguson 9500 2WD Brakes
Brake Type
Oil Immersed Brakes
Massey Ferguson 9500 2WD Steering
Steering Type
Power
Massey Ferguson 9500 2WD Power Take Off
PTO Type
Qudra PTO
PTO rpm
540 RPM @ 1790 ERPM
Massey Ferguson 9500 2WD Fuel Capacity
Fuel Tank Capacity
60 litre
Massey Ferguson 9500 2WD Dimension and Weight
Weight
2305 KG
Wheelbase
1980 MM
Overall Length
3450 MM
Tractor Width
1862 MM
Ground Clearance
420 MM
Massey Ferguson 9500 2WD Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
2050 kgf
3 point Linkage
Draft, position and response control
Massey Ferguson 9500 2WD Tyre Size
Front
7.50 x 16
Rear
16.9 x 28
Massey Ferguson 9500 2WD Additional Features
Accessories
Tool, Toplink, Canopy, Hook, Bumpher, Drawbar
Status
Launched
