| Brand | ESCORTS AGRI MACHINERY |
|---|---|
| Cylinder | 2 |
| HP Category | 23HP |
| Gear Box | 8 forward and 2 Reverse |
| Brakes | |
| Warranty |

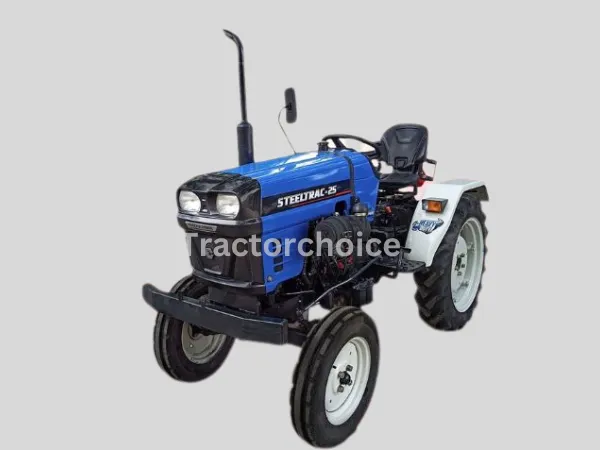

ESCORTS AGRI MACHINERY Steeltrac 25
Steeltrac 25 FULL SPECIFICATION
ESCORTS AGRI MACHINERY Steeltrac 25 Engine
No. Of Cylinder
1
HP Category
17
Capacity CC
947.4
Engine Rated RPM
2200
Max Torque
63 Nm
Air Filter
Oil bath with Pre-Cleaner
PTO HP
13.4 HP
ESCORTS AGRI MACHINERY Steeltrac 25 Transmission(GearBox)
Clutch Type
Single
Transmission Type
Sliding Mesh, Side Shift
Gear Box
9 Forward + 3 Reverse
ESCORTS AGRI MACHINERY Steeltrac 25 Brakes
Brake Type
Oil Immersed Brakes
ESCORTS AGRI MACHINERY Steeltrac 25 Steering
Steering Type
Mechanical
ESCORTS AGRI MACHINERY Steeltrac 25 Power Take Off
PTO Type
540 & 1000
PTO Power
13.4 HP (9.99 kW)
ESCORTS AGRI MACHINERY Steeltrac 25 Fuel Capacity
Fuel Tank Capacity
20 L
ESCORTS AGRI MACHINERY Steeltrac 25 Dimension and Weight
Weight
850 kg
Wheelbase
1490 mm
Overall Length
2730 mm
Tractor Width
1020 mm
Ground Clearance
245 mm
ESCORTS AGRI MACHINERY Steeltrac 25 Lifting Capacity(Hydraulics)
Lifting Capacity in Kg
750 kg
3 point Linkage
ADDC
ESCORTS AGRI MACHINERY Steeltrac 25 Tyre Size
Front
5 X 12
Rear
8 X 18
ESCORTS AGRI MACHINERY Steeltrac 25 Additional Features
Status
Launched
